Underpinning Contractors

We are expert in determining the root cause of subsidence and offer effective techniques for underpinning. As an underpinning contractor, we provide the best and cost effective underpinning solutions. We analyses the property condition including ground stability, foundation type and bearing strata for both residential and commercial sectors.

contact us

Underpinning Foundation

We provide professional foundation underpinning contractor services, which are designed to stabilise the existing ground and strengthen the existing foundation. If your property has any sign of cracks or subsidence, foundation crack or failure, or needs remediating and reinforcing of existing or new load bearing capacity to foundations, our skilled team of experts delivers effective design and reinforcing solutions for underpinning.

Structural Design

Subsidence

Underpinning

Underpinning Foundation

Underpinning Basement

Underpinning

What is underpinning? Underpinning a foundation or basement is a technical process of strengthening and stabilising the ground and foundation, which could be an existing or new structure. This could range to any building structure size and shape, from single storey structures to multi storey. Underpinning is proposed when the original design foundation is failed due to the following factors.

– Unstable ground or poor design to take the applied load or new load implication.

– Poor soil condition or ground erosion.

– Applying additional load such as the addition of a new floor or loft or extension.

– Ground movement due to environmental factors.

– Water Table fluctuation

– Softening of ground due to drain leaks or water main leaks (this could be near within the perimeter radius of the foot-print structure).

Contact Us

admin@cullinan-uk.com

0333 7722799

Architects in Wolverhampton making a deal with Interior Designer Near Me for Architectural Design Services

Methods Of Underpinning

The methods of underpinning a foundation could depend on various factors and extent of subsidence and structural cracks. It is always advised to follow ground report and structural design reflecting the underpinning methods. Following are few methods.

  • 1

    Concrete Pour Underpinning

In this method, the ground or affected area is excavated to a depth of hard strata and concrete is poured with an agreed ratio to provide stability to the foundation and load taken.

  • 2

    Reinforcement RCC underpinning

This method is quite similar to the above however reinforcement bars are added to concrete to provide better tensile strength to concrete. Concrete is good at resisting compression but fails on tensile stress hence, the addition of steel (cage or mesh composition) adds additional strength. Since it is below ground enhanced Fusion Bonded Epoxy coating RCC is used to provide great protection against corrosion and chlorine and excellent bonding with concrete.

  • 3

    Piling underpinning

In this method, piling (either screw or sheet driven) is inserted into the ground till it reaches the hard ground. This process involves drilling piles to support the structure load.

  • 4

    Resin Injection

In this method is quite popular due to its significant cost-effectiveness. It is an expandable material that is injected where access is limited. However it is advised to seek structural engineers design and consent on resin injection as it is not suitable in most structural load distributions due to unforeseen injection.

  • 5

    Precast Beam Underpinning

This method involves precast beams and blocks being placed below the foundation where the ground requires support. However, this method is more modular and requires off-site build prior installed on site.

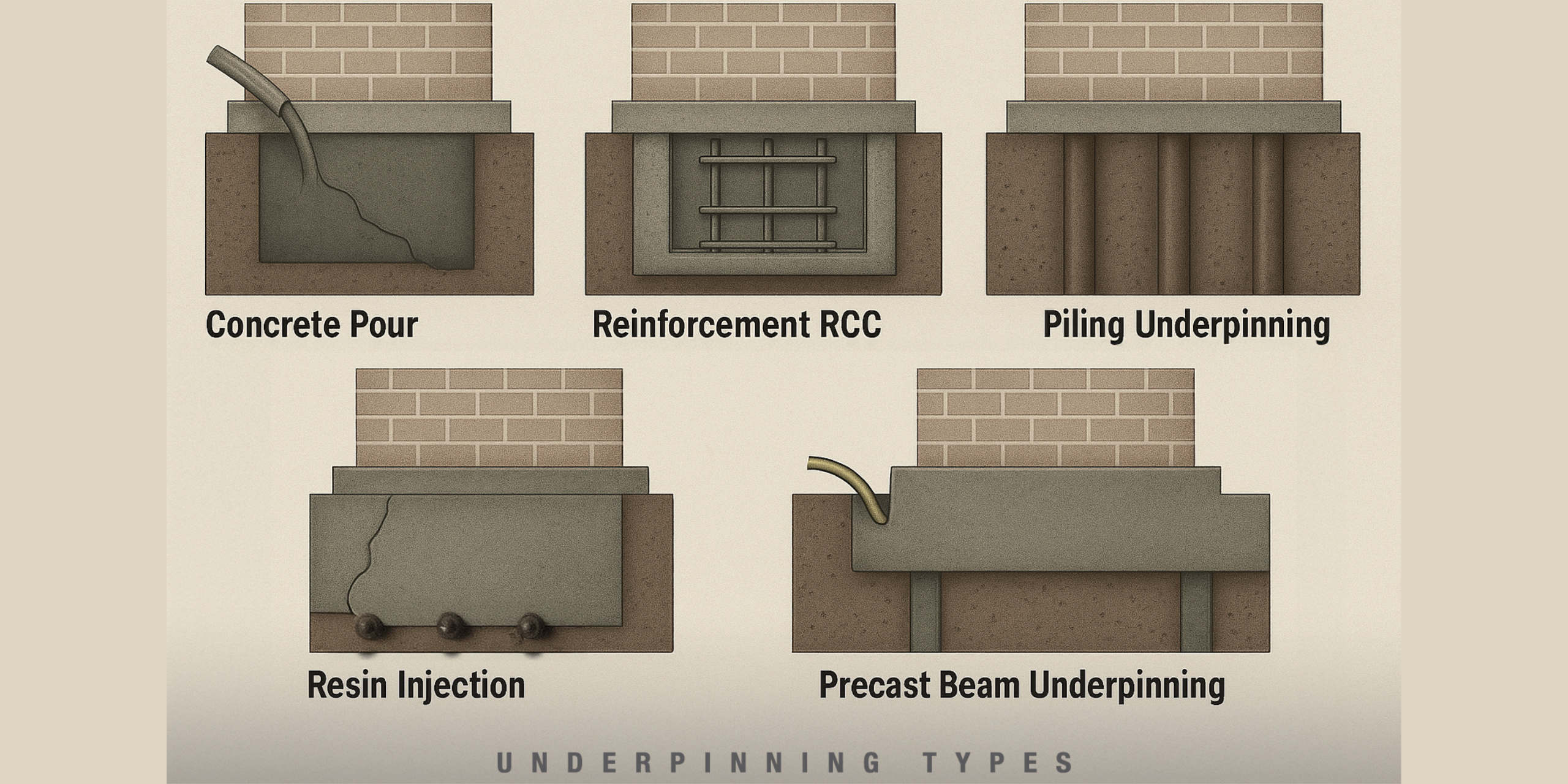

underpinning work types in uk

Why Choose Us?

Deft Consultation

Our experienced team provide the tailored consultation according to your requirement of Fire rated doors for your project.

Extensive Services

We cover each and every aspect of underpinning and its maintenance as well ranging from internal fire door to fire door external.

Experience

Our team are highly experienced in designing and constructing all your needs. We ensure our clients gets best results.

Safety Compliance

We make sure to comply with all safety regulations and standards for our all-Fire door installations.

Installation Service

Ensures proper professional fire rated doors fitting and functionality, which is critical for building safety and compliance.

FAQS

Frequently Most Asked
Questions

It depends on various factors however for a standard work on a residential property – it is approx. 5,000 to 20,000. Depends on the extent of subsidence and the level of work involved.

Not really as underpinning works are done to overcome the subsidence which could be due to the age of the property, shallow foundation, or Water table fluctuation. Underpinning works should be signed off by the structural engineer and building control. Underpinning should add value to the property due to the addition of a structure element to take the existing and new load.
